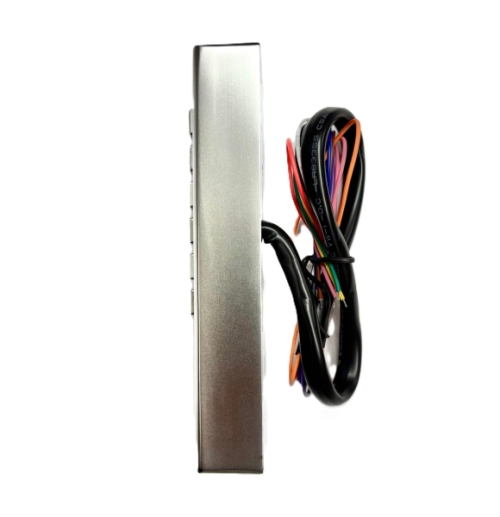

[32223] Code lock NED-2026, with RFID reader 125kHZ+13.56MHz, 10-24VDC, IP68
Features
Multifunction standalone access controller or a Wiegand output keypad or card/tag reader. It is suitable for mounting either indoor or outdoor in harsh environments. The electronics are fully potted so the unit is waterproof and conforms to IP68. The inbuilt card reader supports 125KHZ EM cards and 13.56MHz Mifare cards. The unit has many extra features including Wiegand output , and a backlit keypad. These features make the keypad an ideal choice for all types of door environments.
Technical specifications
Operating voltage: 10-24VDC ±10%
Dimensions: 130 x 45 x 21mm (h x w x d)
User capacity: 3000 + 5 guest users
RFID reading distance: 3-6 cm
RFID frequency: EM 125kHz and Mifare 13.56MHz
RFID tag #32225 and #32226
Active current: <100mA
Idle current: <40mA
Lock output load: Max 2A, SPDT changeover switch
Alarm output: Load Max 1A
Operating temperature: -40-60C
Operating humidity: 10%- 90% RH
Waterproof: Conforms to IP68
Adjustable door relay time: 0 -120 seconds
Adjustable alarm time: 1- 3 minutes
Wiegand Interface: Wiegand EM 26-44bit, Mifare 26-44bit, 47bit, 56bit, 58bit, 64bit, 66bit
Retains programming data after power failure
Possibility to copy user data to another code lock
