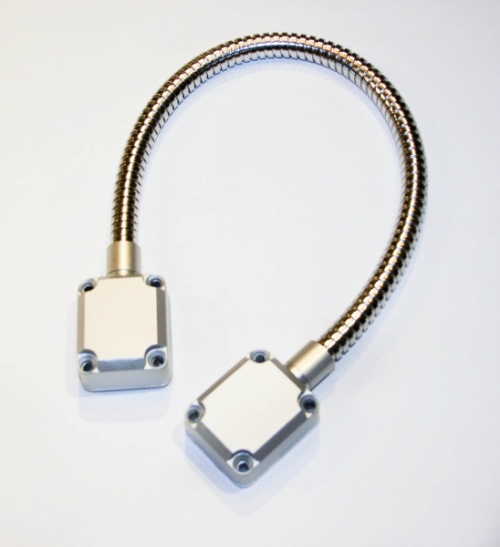

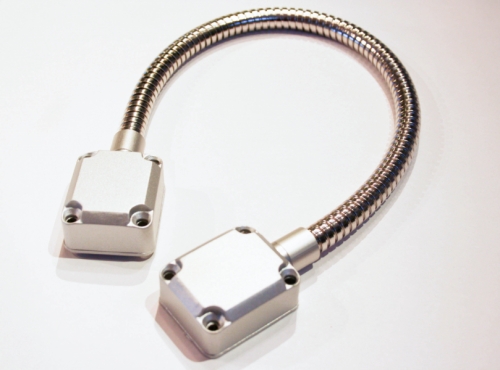

Door loop P350 surface mounting with finished ends, length 400mm
[63000] Door loop P350 surface mounting with finished ends, length 400mm
Features
Used for the protected passage of wires between the door panel and the frame.
The door loop is installed between the frame and the door panel as surface-mounted.
Technical specifications
Mounting ends: metal casting.
Spiral: galvanized armored hose.
Diameter of cable: max. Ø 8 mm.
Overall length: 500 mm.
Spiral length: 400 mm.
Internal diameter of the spiral: 8mm
Spiral outer diameter: 13mm
Flexible armored hose with anodized ends.
Length: 400mm (shortenable).
Dimensions of the ends: 48 x 40 x 23 mm.
Pack size 1 pcs
