[20200] PSU 100.2A+RV 230VAC/ 12VDC, 2A
Features
Battery backup power supply for uninterruptible power supply , used for example in access control, alarm and locking applications.
The PSU 100.2A + RV includes a delay circuit of 1-30s with a changeover contact and a push button for controlling the terminal block delay circuit.

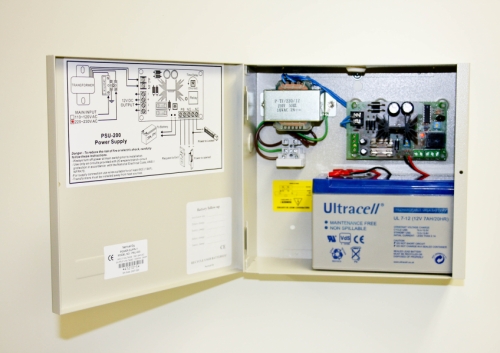

Complete delivery including battery 1 x 7 Ah, mains lead, inlet seals and small accessories.
Technical specifications
Supply voltage range 230 VAC
Frequency 45 ... 65Hz
Electrical safety CE marked.
Battery, Powersonic 12V / 1x 7.0 Ah
Fuse T5A glass fuse, high breaking capacity
Outlet fuse (charging unit + batteries) T2A glass fuse, high breaking capacity
Output voltage (control range) 12V (10.5 ... 15V)
Output current 2A
Surveillance and alarms
Capacitor OK Green led
Battery Status: Red Led
Weight: 5 kg with battery
Enclosure: Steel enclosure IP20
Door Lock: With tool (screwdriver)
Cooling: Free air rotation
Operating temperature: -20 ° C to + 35 ° C
