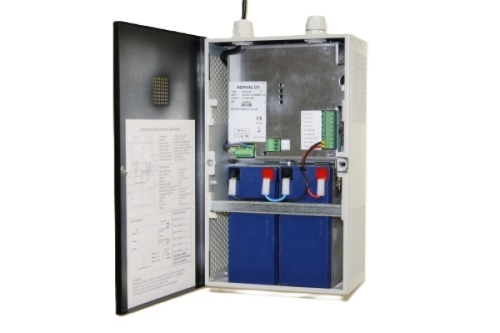

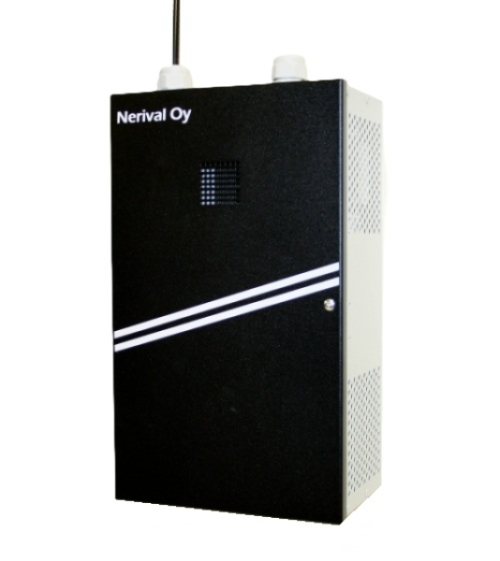

[20800] PSU 2410A 230VAC/ 24VDC, 10A
Features
Battery backup power supply for uninterruptible power supply , used for example in access control, alarm and locking applications.
Complete delivery including battery 2 x 7 Ah = 7 Ah in series, mains lead, inlet seals and small accessories.
Technical specifications
Supply Voltage Range 230 VAC / 184 ... 264 VAC (115 VAC / 94 ... 132 VAC)
Frequency 45 ... 65Hz
Electrical safety according to EN 60950, class 1.
EMC EN 55022B
Efficiency (Uin = 230 VAC, 100% load) 24V / 87%
Output voltage 27.6VDC (control range 21 ... 29 V)
Output current 10A
Batteries, 2 x Powersonic 12V 7Ah, 24V / in series 24V 7Ah,
Deep discharge protection when voltage 20V (24V)
A fuse 24V / 4A high breaking capacity
Output fuse (charging unit + batteries) 15A circuit breaker circuit breaker
Weight 8 kg with battery
Enclosure Steel enclosure IP21
Operating temperature -20 ° C to + 45 ° C
Relative humidity 85% RH IEC68-2-30
