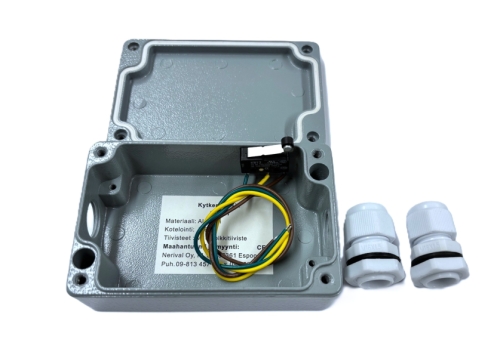

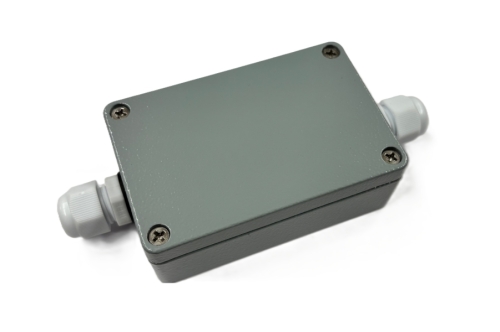

AVR 67K Aluminum junction box with tamper switch for eg spiral cables
[40325] AVR 67K Aluminum junction box with tamper switch for eg spiral cables
Features
Durable cast aluminum junction box for demanding environments with plastic strain relief cable glands and tamper switch.
It is recommended to use MHT16 # 40333 for the spiral cable installation.
Technical specifications
Plastic M16 cable glands.
Cable Ø 5-10mm.
Material aluminum.
Enclosure class IP67
Operating temperature -35 to + 70C.
Voltage max 30Vdc
Dimensions 64x 98x 34mm.
Tamper switch: changeover contact, pre-wired leads NO/NC/COM
