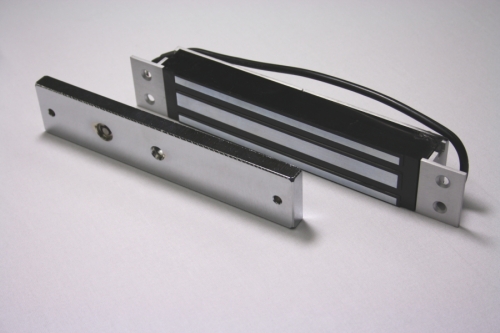

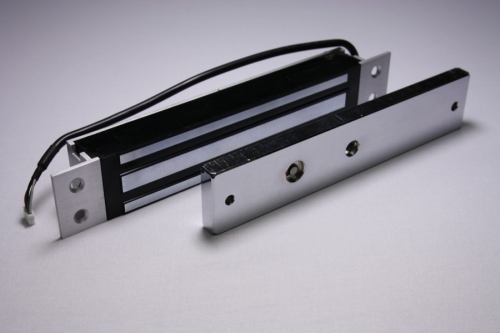

[50730] Ner 3000UR Electromagnetic lock for flush mounting with status information
Features
A flush-mounted magnetic lock with 300kg holding force.
Designed for use in eg sliding doors.
Thanks to its symmetrical design, it is suitable for both right and left hand doors.
Made of durable anodised aluminum.
Does not include parts subject to wear.
Technical specifications
Holding force: Max. 3000N no residual magnetism.
Structure: Anodised aluminum for flush mounting
Dimensions:
Magnet 229x 39x 26mm
Armature plate 185X 36x 11mm
Supply voltage / current:
12VDC / 500 mA, 24VDC / 250mA
Supply voltage factory installation 24VDC
Can be changed to 12VDC with short-circuit setting.
Relay output potential-free changeover contact 0.1A / 30 VDC.
The recognition of the armature plate is based on the Hall phenomenon.
Control and Emergency opening via (+) conductor.
Weight: 1.95kg
