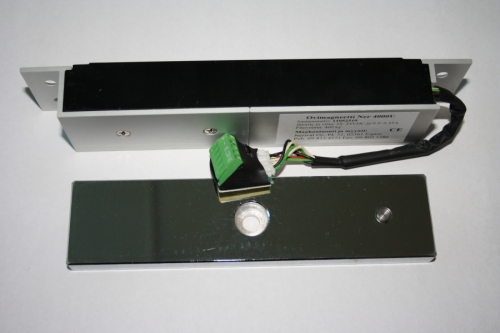

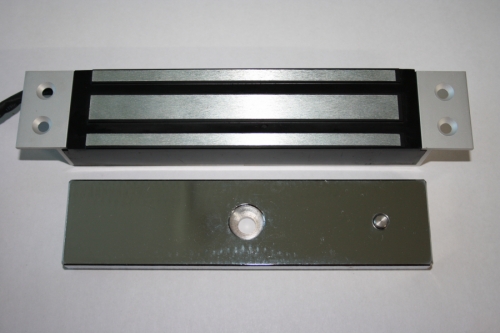

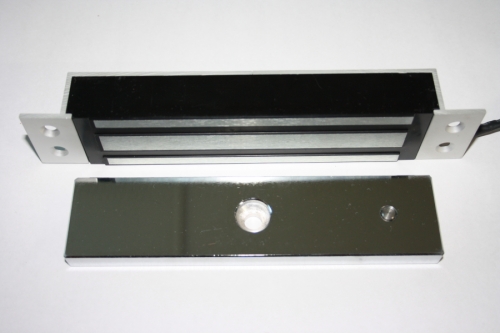

[50930] Ner 4000 U Electromagnetic lock for flush mounting with status information
Features
Flush mounted magnet lock with 400kg holding force.
Designed for use in eg sliding doors.
Thanks to its symmetrical design, it is suitable for both right and left hand doors.
Made of durable anodised aluminum.
Does not include parts subject to wear.
Technical specifications
Holding force: Max. 4000N is not residual magnetism.
Structure: Anodised aluminum for flush mounting
Dimensions:
Magnet 228x 44x 29.5mm
Armature plate 185x 45x 12mm
Supply voltage / current:
12VDC / 500 mA, 24VDC / 250mA
Supply voltage factory installation 24VDC
Can be changed to 12VDC with short-circuit setting.
Lock status
Relay output potential-free changeover contact 0.1A / 30 VDC.
The recognition of the armature plate is based on the Hall phenomenon.
Weight: 2.2kg
Product #51590 is used as the Z-mounting bracket
