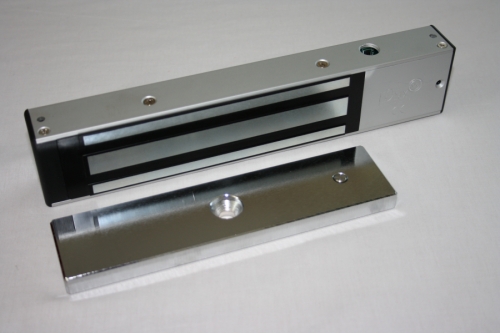

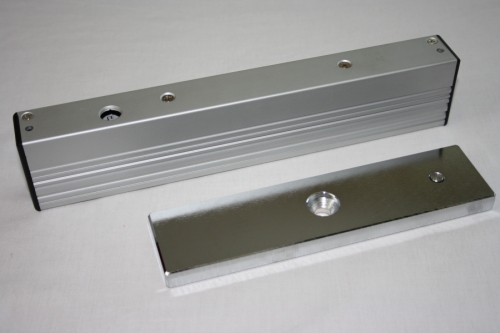

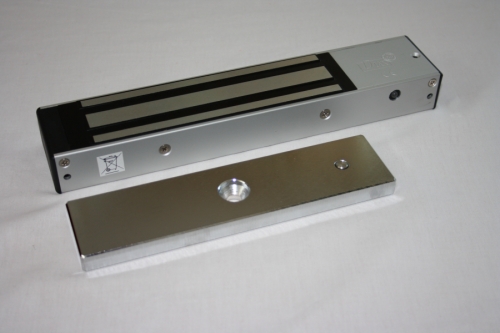

[50950] Ner 4000LR Electromagnetic lock for surface mounting with status information
Features
Surface-mounted magnet lock for high-security objects.
Thanks to its symmetrical design, it is suitable for both right and left hand doors.
Made of durable anodised aluminum.
Does not include parts subject to wear.
When standard mounting is not possible, available special fasteners.
Technical specifications
Holding force: Max. 4000N no residual magnetism.
Design: Anodized aluminum for surface mounting.
Dimensions:
Magnet 285x 55x 29mm
Armature plate 190x 45x 11mm
Supply voltage / current:
12VDC / 500 mA, 24VDC / 250 mA.
Supply voltage factory installation 24VDC
Can be changed to 12VDC with short-circuit setting.
Lock Mode Indicator / Status Information:
Relay output potential-free changeover contact 0.1A / 30 VDC.
The recognition of the armature plate is based on the Hall phenomenon.
Control and Emergency opening via (+) conductor.
Weight: 2.65kg
Product #51568 is used as the L-mounting bracket
Product #51590 is used as the Z-mounting bracket
