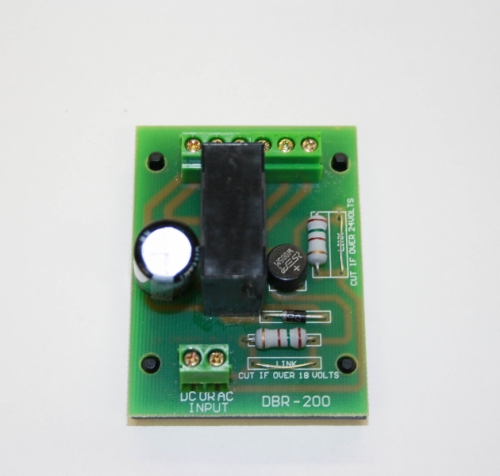

DBR-200 Relay module, supply voltage 8-30VAC / 11-30VDC, 2pcs changeover contacts
[22000] DBR-200 Relay module, supply voltage 8-30VAC / 11-30VDC, 2pcs changeover contacts
Features
The relay module DBR-200 is a relay that operates in a wide operating voltage range.
2 changeover contacts (NO, C, NC).
The wires are connected to the screw terminals.
Technical specifications
Supply voltage: 11-30VDC / 8-30VAC
Power consumption 12V: 45mA
Contacts: 2x changeover
Current endurance of the contacts: 5A
Dimensions (Width x Height x Depth): 67 x 50 x 35 mm
Connectors: max. 2.5 mm²
