MV-300PK LED indicator light for surface mounting

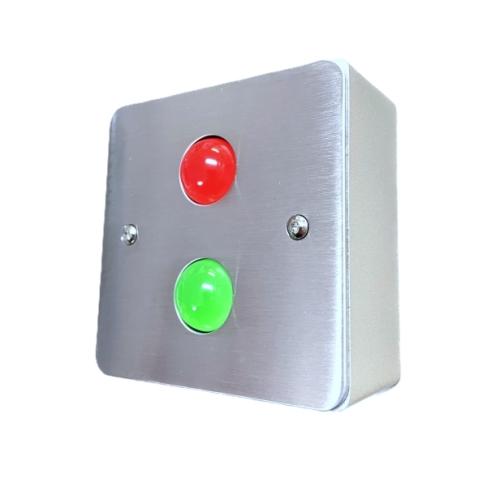

[61977] MV-300PK LED indicator light for surface mounting
Features
Indicator light with two LEDs for surface mounting.
The operation of the LEDs can be selected for continuous or blinking operation.
Supplied with stainless steel cover, surface mounting frame made of zinc alloy.
Technical specifications
Operating voltage: 12 ~ 24VDC
Power consumption: 50mA / 12VDC, 80mA / 24VDC
Installation: Surface mounting
Material: Stainless steel, frame made of zinc alloy
Dimensions: 85.5 x 85.5 x 30 mm (W x H x D)
Diameter of Ø 19 mm
Protection class IP 21
The gap between the screws is 60 mm
Operating temperature: -25 ° C to + 70 ° C
Approvals: CE, Rohs
Weight: 0.39kg
