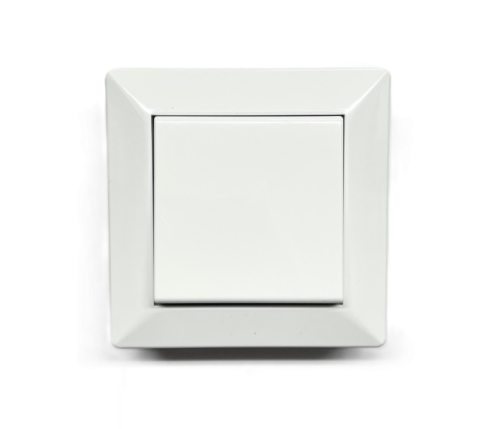

PP-100U Exit switch for flush mounting with cover plate white
[62460] PP-100U Exit switch for flush mounting with cover plate white
Features
Toggle switch for flush mounting. Button and cover plate with polar white thermoplastic with quick fastening. Screw connectors for conductors.
Technical specifications
Installation: Flush mounted
Contact function: 1 pcs normally open (N / O)
Color: Polar White
Number of contacts: 1 pcs
Connectors: max. 2.5 mm²
Material: plastic
Dimensions: (h x w) 86x86mm
Contacts max. current cos = 1: 10 A, 50 VDC
Enclosure class: IP20
Max. humidity: 95%
Operating temperature: -30 ° C to + 70 ° C
Contact Material: Silver
