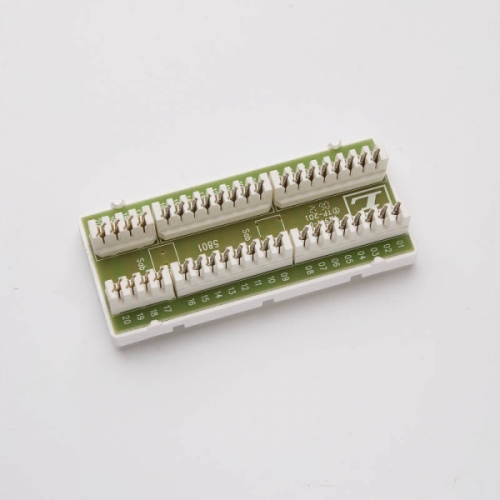

[72810] Connection module Linjator 5000 LSA 20-pole, for VMC 4000/2 and 5000/1 connection box
Features
20-pole LSA-connection module with punch down technology.

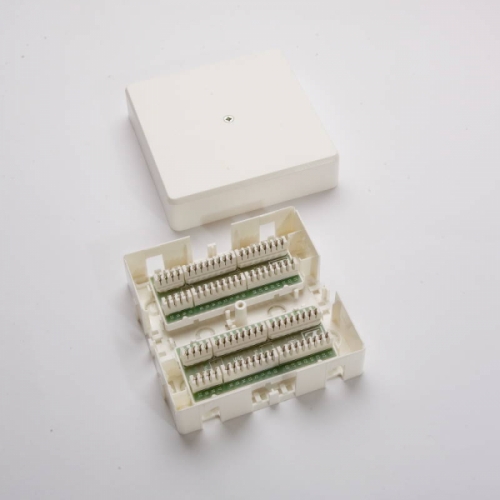

The module is installed to the connection box #72665 or #72670 simply by pressing it in its place.
Wires are installed in the module with a separate tool to provide a fast and reliable connection.
The conductors do not need to peel or solder.
The punch down connectors allow the connection of different types and sizes of conductors.
Technical specifications
The silvered contact surfaces at an angle of 45 degrees ensure that the conductors stay intact at the junction and allow a reliable connection of multi-stranded conductors.
Number of connectors: 20-pairs
Life span: 200 connections
Dimensions: 40 x 89 x 17 m (H x W x D)
Max. humidity: 85%
Operating temperature: -5 ° C to + 40 ° C
Material ABS plastic, fire-treated.
Fire rating UL94 V-O.
Connectors: Silver-plated
