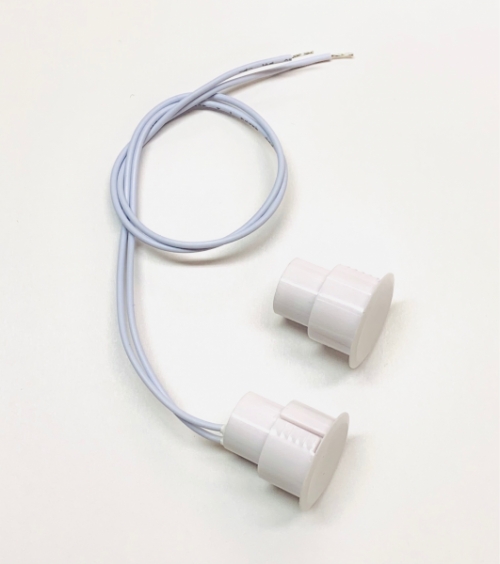

MK-210M Magnetic contact for steel door, recessed mounting
[72596] MK-210M Magnetic contact for steel door, recessed mounting
Features
The magnet contact consists of two parts, the magnet contact itself and the permanent magnet.
The contact and magnet are mounted on the fixed and movable part of the subject being monitored.
The circuit breaker remains closed at the magnetic field force.
As the spacing of the contact elements increases, the circuit breaker magnetic field decreases and the circuit breaker opens. This gives the actuator contact information.
Technical specifications
Contact function: Normally closed (N.C.)
Material: ABS plastic
Dimensions:
Magnetic contact 25 x 24mm
Magnet 25 x 24mm
Borehole 18mm
Operating temperature: -20°C … +80°C
Operating voltage: 1-30V DC/AC
Switching current: 500mA AC / DC
Operating distance: approx. 30mm
