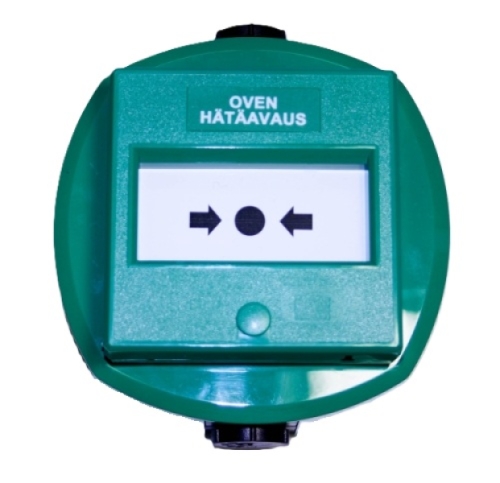

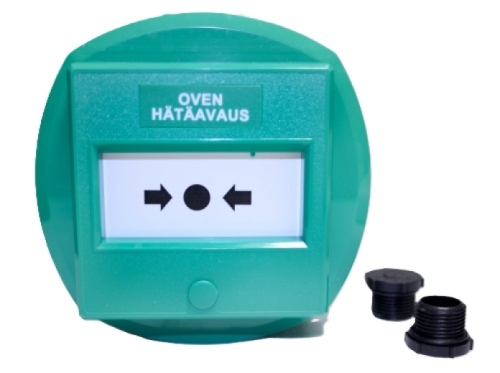

HL5030MG2 IP67 Call point (green)
[60500] HL5030MG2 IP67 Call point (green)
Features
The release button command is given manually to the control center or the actuator.
It can control, for example, magnetic locking, reversible solenoid locks,
smoke extraction, air conditioning and various alarms.
The high enclosure class makes it very suitable for demanding installation conditions.
Technical specifications
Installation: Surface mounting
Contact function: 2 pcs changeover
Color: Green
Number of contacts: 2 pcs
Connectors: max. 2.5 mm²
Micro switch contact resistance: 100 mohm
Material: Polyphenylene plastic
Dimensions: (height x Ø) 60 x 130 mm
Contacts max. current cos = 1: 5A 50VDC / 3A 230VAC
Protection: IP67
Operating temperature: -40 ° C to + 85 ° C
Contact Material: Silver
